Styl 100dia Bathroom Fan with Pull Cord

Ducting Online
(Code: Styl 100 WP)
Styl 100dia Bathroom Fan with Pull Cord
£ 15.99
  1. #Description#

    Advantages:
    - Quiet running, only 40 dB(A) @ 3mVoltage
    -V/Hz  230/50Meets building regulations.
    - With Pullcord
    - 100 m3/hour airflow capacity

    100dia model availableLow Noise and Low EnergyIdeal for toilets, bathrooms, shower rooms etc.

  2. #Technical Data#

    Parameter STYL 100
    Phase 1
    Voltage 230 V
    Frequency 50 Hz
    Sound Pressure level at 3m distance 40 dBA
    Power Consumption 15 W
    Maximum Air Capacity 100 m3/hr
    RPM 2650  min-1
     Protection Rating IP 24
     Weight 0.32kg
     Current 0.12A

    Dimensions


    STYL Dimensions~
    A = Dia 99mm B = 158mm C = 56mm D = 20mm

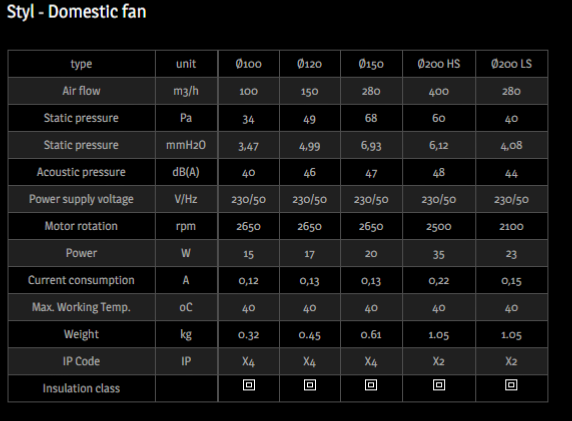

    Further Technical Data
    Flow
  3. #Direction of use#
    (1) Wall Installation - Exhaust to the installation ventilation.
    (2) Wall Installation - Exhaust outside the building using the installation set.
    (3) Ceiling Installation - Exhaust to the installation ventilation.
    (4) Ceiling Installation - Exhaust outside the building using the installation set.
    STYL Directions of use.
