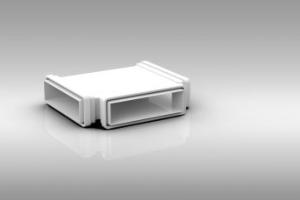

Rapid Self-Seal Duct 204 x 60 TCP T-Piece

Rapid Self-Seal Duct 204 x 60 TCP T-Piece

(Code: VSSC-204x60-TCP)
Rapid Self-Seal Duct 204 x 60 TCP T-Piece - Airtight Seal
  1. #Description#

    The VSSC-204x60-TCP is manufactured from (white) high impact polystyrene and has a free area of 12,232mm². The Self-Seal T-Piece incorporates a gasket to reduce air leakage to an absolute minimum between system PL125 FD ducting.

    • Super Fast and Easy Installation
    • No need for Tape, Sealant or Tec Screws
    • Airtight Seal
    • Less Waste
    • Full range including round and rectangular solutions
    • Compatible with our PL125 FD Flat Channel Pipe
      PLEASE NOTE THIS DUCT IS ON A 2/3 DAY DELIVERY SERVICE ONLY
  2. #Technical Data#
    Size - 204 x 60mm
    Weight - 660g
    Colour - White
    Min Operating Temp -  -15ºC
    Max Operating Temp - +60ºC

    The Rapid Self-Seal VSSC-204x60-TCP is fully compliant with SAP Appendix Q Product Characteristics Database recommendations for duct sizes used with both extract and Mechanical Heat Recovery Systems. It is also manufactured in compliance with Domestic Plastic Ductwork Specification DW/154 and does meet UL94HB flammability standard.

  3. #Direction of use#
    We will be adding our installation guide here soon.
