Etaline EL2  Ruck Inline Centrifugal fan
  1. #Description#
    • Diagonal impeller with stator
      With Plastic housing
      Speed controllable
      Integrated thermostatic
      switch Including mounting bracket

      The Ruck range of inline centrifugal duct fans are suitable for a variety of applications,including workplace air extraction, laboratory ventilation, and the ventilation of production sites and storage facilities.

      Etaline E fans are available in a number of different sizes, and are incredibly energy efficient. In fact, they have almost twice the efficiency of standard duct fans.

      The compact dimensions and integrated mounting foot of the Etaline E Ruck Inline Centrifugal Duct Fans help to simplify the installation process; whilst good sealing and optimum aerodynamics ensure quiet operation. Please note these fans have plastic impellers.

      E2 = 2 Pole -Single Phase - 220v - 240v / 50HzE4 = 4 Pole -Single Phase - 220v - 240v / 50Hz

      Specifications50% Increase in Fan efficiency30% Reduction of energy requirementPreserves the environmentDiagonal fan for duct installationTo secure the Inline fan a Fast Clamp is required, the fan does not fit directly into ductingDespite the superior product features, the Etaline E Inline fan is astonishingly inexpensiveWe hope you’re able to find everything you need on our website, but if there’s anything we can help with please do get in touch.

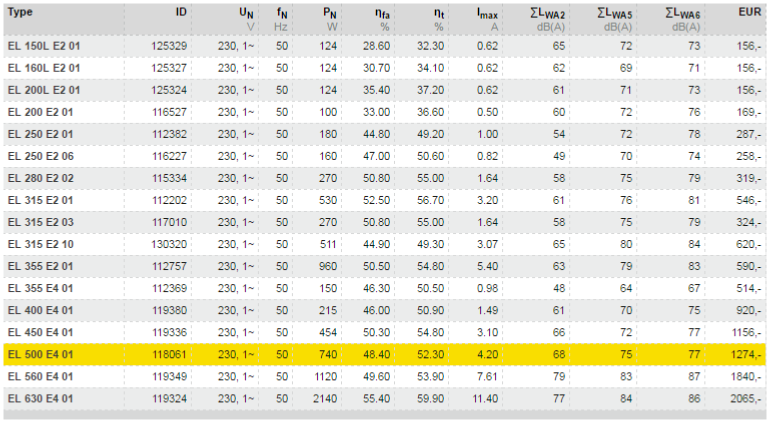

  2. #Technical Data#

  3. #Direction of use#

    We will be adding our installation guide here soon.
