Egg Crate Grilles

Egg Crate Grilles

(Code: ECGRILLE)
Egg Crate Grilles
Please select size of Egg Crate
Add to cart
  1. #Description#

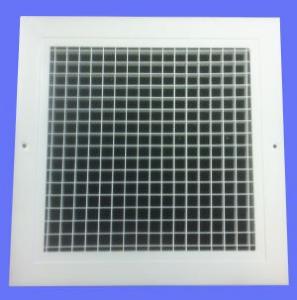

    Egg Crate Grilles

    Capable of handling huge air volumes, egg crate grilles are perfect as intakes into air handling units and for areas where high changeover rates are needed i.e. Paint booths, restaurant kitchens etc..
    150 x 150 Neck Size = 200 x 200 Outside Measurement
    200 x 200 Neck Size = 250 x 250 Outside Measurement
    250 x 250 Neck Size = 290 x 290 Outside Measurement
    300 x 300 Neck Size = 350 x 350 Outside Measurement
    450 x 450 Neck Size = 490 x 490 Outside Measurement
    500 x 500 Neck Size = 540 x 540 Outside Measurement
    540 x 540 Neck Size = 595 x 595 Outside Measurement


  2. #Technical Data#
    Free Area: 90%
    Mass/M sq face area: 7.5kg
    Mass/M sq face area inc OBD: 15.5kg
    Specifications
    Extruded Aluminium throughout, Plastic Core optional
    Aluminium Core
    Frame held together using punched in steel corners
    Core held in by frame design
    Frame: 37mm Bevelled
    Finish: White RAL 9010

  3. #Direction of use#

    We will be adding our installation guide here soon.
