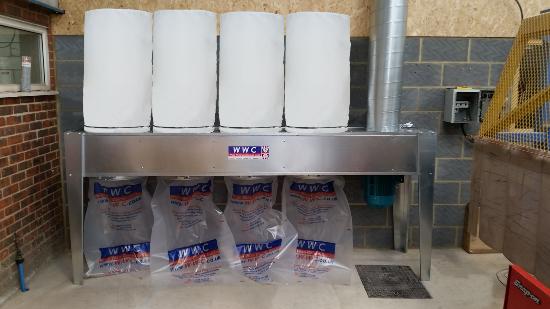

FB4-10 Four Bag Extractor 10hp
The FB4-10hp Four Bag extractor delivers a powerful solution for nearly all types of swarf and wood chip removal.

Unit comes as standard with the following
  • 4 Cloth Needlefelt Filter Bags
  • 20 Heavy Duty Polyurethane Waste Bags
  • 6mm Mild Steel Impeller
Unit Specification
  • Length @ 2950mm, Width @ 700mm, Height @ 2500mm
  • 300mm Inlet Diameter
  • 10hp - 7.5kw Motor
  • 3 phase - 415v - 50hz
  • Air Flow @ 5521 M/hr (Meters Cubed Per Hour)
Manufactured in the UK by Wood Waste Control Engineering Limited

Please note:  This extractor is not suitable for fine dust

FB 4 -- Four Bag Unit
